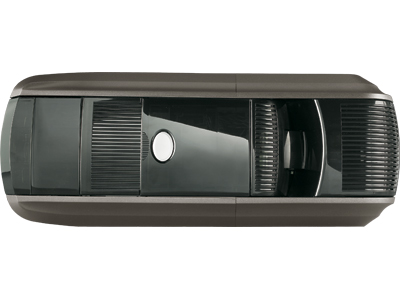

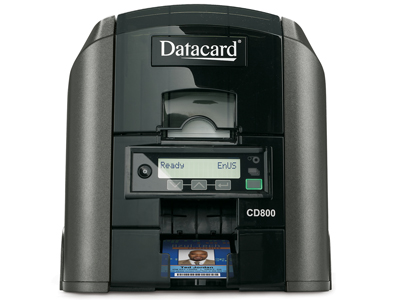

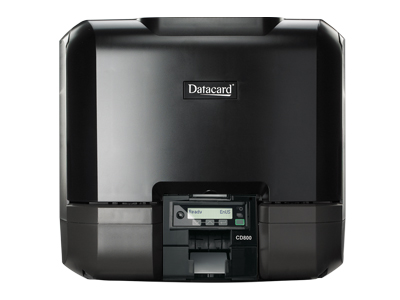

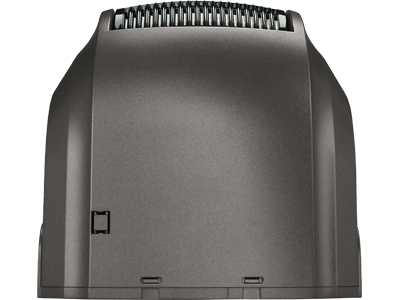

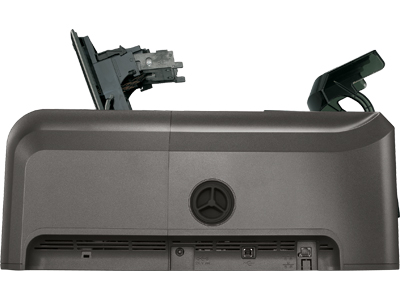

CD800 Card Printer
Maximize productivity and increase ID card issuance efficiency with the industry-leading features of the Datacard® CD800™ card printer. Faster printing, more reliable performance and the highest resolution available make the CD800 card printer a great fit for a variety of applications, including state and local governments, corporate or educational applications.
- Streamlinecard issuance with productivity-focused print technology
- Reproduceintricate text and images with high-resolution printing
- Protect your investment with printer modularity and upgrades like inline lamination
Options
- One- or two-sided printing
- Modular one- to two-sided printing upgrade
- Magnetic stripe encoding and/or smart card personalization
- Extended 100-card output hopper
- Extended 200-card input hopper
- Six-compartment multi-hopper; Six 100-card hoppers, 600-card total capacity
- Kensington® security lock for printer
Specifications
Print technology
- Direct-to-card dye-sublimation/resin thermal transfer
Print capabilities
- One-sided (simplex) or optional two-sided (duplex) edge-to-edge printing
- Full-color and monochrome printing capability in the same printer
- Alphanumeric text, logos and digitized signatures; 1D/2D bar code images
- Printer pooling/sharing (available soon)
Print resolution
- Standard mode: 300 x 300 dots per inch; standard text, bar code and graphics printing
- High-quality mode: 300 x 600 dots per inch for enhanced text, bar code and graphics printing; 300 x 1200 dots per inch for enhanced text and bar code printing
- 256 shades per color panel
Print speed
- Full-color: Up to 220 cards per hour, one-sided (YMCKT); up to 165 cards per hour, two-sided (YMCKT-K)
- Monochrome: Up to 1,000 cards per hour, one-sided (Black HQ)
Card capacity
- Automatic feed: 100-card input for 0.030 in. (0.76 mm) cards; 25-card output standard
- Front exception card slot
- Separate reject location and holding tray (two-sided printer model only)
- Input hopper empty detection
Physical dimensions
- One-sided printing: L 17.4 in. x W 8.8 in. x H 8.8 in. (44.2 cm x 22.4 cm x 22.4 cm)
- Two-sided printing: L 21.2 in. x W 8.8 in. x H 8.8 in. (53.8 cm x 22.4 cm x 22.4 cm)
- Six-compartment multi-hopper: L 27.5 in x W 16.5 in. x H 14.5 in. (69.9 cm x 41.9 cm x 36.8 cm)
Weight
- One-sided printing: 9.0 lbs (4.1 kg) (depending on options)
- Two-sided printing: 12.0 lbs (5.4 kg) (depending on options)
- Six-compartment multi-hopper: 33.0 lbs (15.0 kg)
Operating system support for printer driver
- Windows® 7 / Windows 8 (32 and 64 bit)
- Windows XP SP3 / Windows Server® 2003 R2 (32 bit)
- Windows Server 2012/2008 (64 bit)
- Microsoft Windows® Hardware Quality Labs (WHQL) certified
Environment/energy-saving features
- Biodegradable supply cores made with EcoPure® additive
- Recyclable enclosure plastics (marked with recycle symbol per Resin Identification Code)
- Recyclable packaging
Included with printer
- Printer driver CD, Quick Install Guide and warranty
- IDCentre™ Intro identification software
- Cleaning pen
- Cleaning roller spindle
- USB cable
- Power supply
- Power cord (region-specific)
